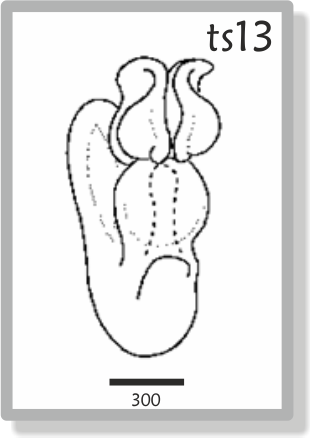

Theiler Stage 13 - Turning of the embryo
This is a short period with turning initiated in embryos with 6-8 pairs of somites and usually completed in embryos with 14-16 pairs of somites. The first branchial arch has maxillary and mandibular components but the maxillary process is not visible until later (TS16). A second branchial arch is now evident. There is evidence of regionalisation of the heart and the neural tube is closed from a point opposite the outflow tract to the proximal part of the tail.
Absent: 3rd branchial arch.
8.5 dpc (range 8-9.25)
Carnegie - Stage 10 (human - stage table)
Virtual Human Embryo - Stage 10
All scale bars in microns
Click on an image for a larger version.
